DC 48v 1kw screwed in type electric immersion cartridge heater

FOB Reference Price:Get Latest Price
$9.80 - $26.80 / Piece | 2 Piece/Pieces (Min. Order)
Model Number:
DT-710211
Power(W):
1000w
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Type:
Duct Heater
Power Source:
Electric
Place of Origin:
Guangdong, China
Brand Name:
DETAI cartridge heater
Dimension(L*W*H):
19*200mm
Weight:
0.8kg/pc
Voltage:
48v
Certification:
ROHS
Warranty:
1 YEAR
After-sales Service Provided:
Online support, No overseas service provided
Material:
SS304
Color:
White
Tube diameter:
19mm
Tube length:
200mm
Heating wire:
Nickel chrome wire
Usage:
Multi
Thread:
3/4"BSP
Supply Ability
Supply Ability:
20000 Piece/Pieces per Week cartridge heater sample order is welcome
Packaging & Delivery
Packaging Details
DC 48v 1kw screwed in type electric immersion cartridge heater
Carton box with plastic bags
Port
Shenzhen
Product Description

The construction of cartridge heater positions a nickel-chrome resistance wire precision wound around a magnesium oxide core. It is inserted into a stainless or Incoloy tube locating the resistance wire close to the sheath. The core is centrally positioned within the tube and filled with magnesium oxide powder. Nickel pins pass through the centre of the core making contact with the resistance wire at both ends. The whole is assembly is highly compacted by a swaging operation and thus ensuring excellent heat transfer to the external sheath. This allows for operating temperatures to 1600ºF and high watt densities. One end of the heater is closed with a welded metal end-disc and wire leads exit at the opposite end which is typically closed with a lava seal. A variety of wire leads and lead protection options are available. Heaters can be supplied with internal thermocouples, mounting fittings and many other options.

Specifications: DC 48v 1kw screwed in type electric immersion cartridge heater

Sheath Material(SUS304, SUS316, Incoloy800)
SUS304
Volt&Watt(customized)
48v 1000w
Tube diameter(6-25mm)
19mm
Tube length(customized)
200mm
Thread
3/4"BSP
Resistance Tolerance
+10% - 5%
Spirals
Nickel - Chrome
Detai cartridge heater can be customized. Contact us for more information!
Detailed Images

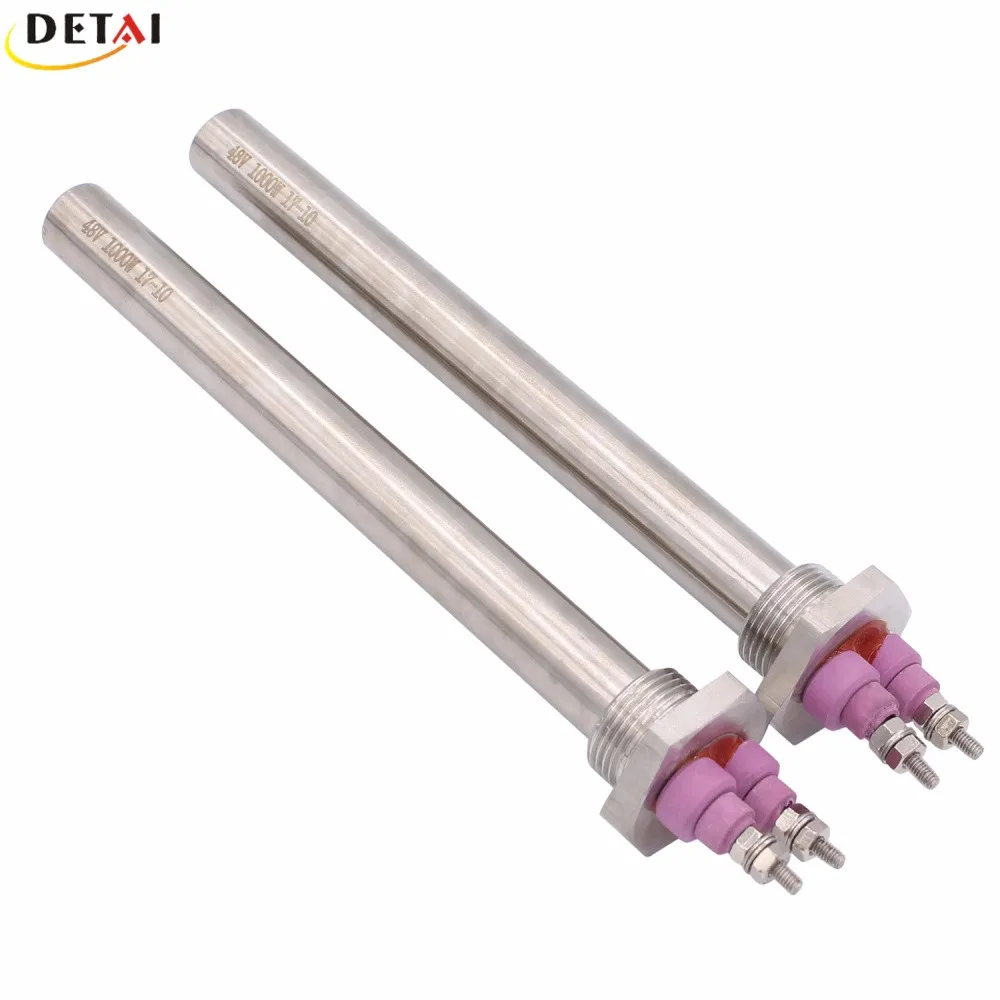

DC 48v 1kw screwed in type electric immersion cartridge heater

Name: cartridge heater
Brand: DETAI
Original: China
Detai cartridge heater (insertion heaters) provide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures. Customers benefit from Detai's on-time delivery, quality and technical assistance.

Product Application
Cartridge heater applications

Water Heating
We recommend 10 watts per square centimetre when cartridges are to be immersed in water because the water removes the energy from the element very effectively. Commonly used as a chemical solutions heater.


Oil Heating
Commonly used as engine sump heaters. When heating some oils, only 2 watts per square centimetre can be used otherwise the high cartridge heater surface temperature causes the oil to oxidise and carbon to be built-up on the surface of the heater. When this occurs, the carbon can thermally insulate the cartridge heater, causing the unit to heat up internally, often resulting in electrical failure.

Air Heating
Elements of approximately 1 watt per square centimetre are suitable for convection air heating, eg. Anti-condensation heaters.

Die Heating
Manifolds, hot runners and torpedoes.
Packaging
Hot melt glue applicators.
Certifications
Our Service

Pre-Sales Service

* Inquiry, drawing and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the heaters, training how to use the heaters.

* Engineers available to service machinery overseas.

Packing & Delivery

Packing

1.PE bags

2.Carton box

3.Wooden case

Delivery

1.Lead time:Normally 8 to 12 days after payment

2.Air&Sea shipping is available.

3.Worldwide international express.
